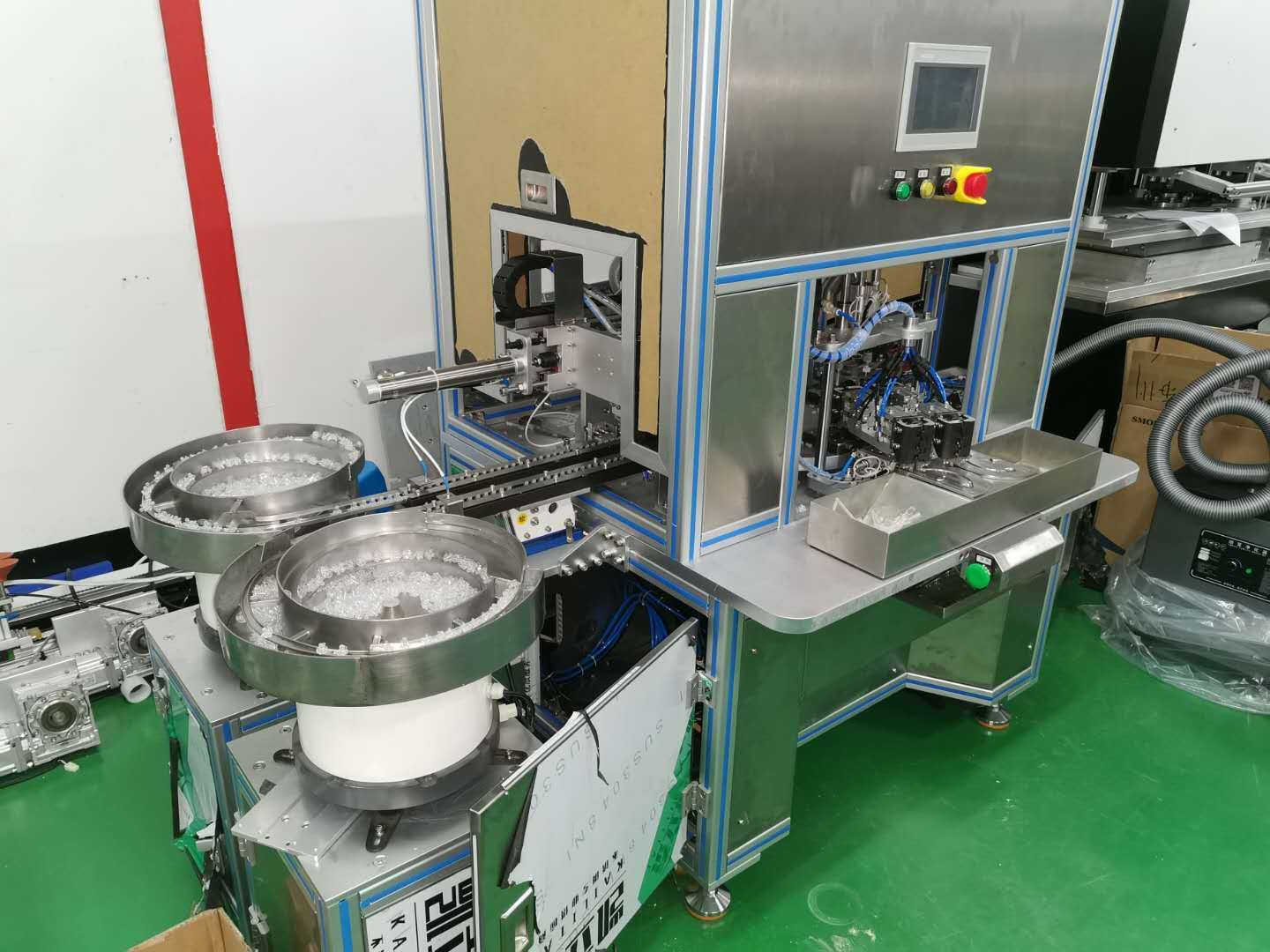

Fully Automatic One‑Way Valve Assembly Machine Multi‑Station Precision Assembly Line Fully Automatic One‑Way Valve Assembly Machine ZZSB001

Quality Fully Automatic One‑Way Valve Assembly Machine Multi‑Station Precision Assembly Line Fully Automatic One‑Way Valve Assembly Machine ZZSB001 for sale

Powersupply : 220V/380V, 50/60Hz

Model Number : JZC-ZZB001

Maintenance : Easy maintenance with modular design

Price : Negotiable

Materialcompatibility : Metal and Plastic Components

Materialfeedingmethod : Automatic feeder

Supply Ability : 10 sets per 120 days

Precision : ±0.01 mm

Safetyfeatures : Emergency Stop, Safety Guards

Payment Terms : Western Union, T/T

Machinetype : Automated Assembly Equipment

Delivery Time : 60-90 days

Operatingmode : Semi-automatic / Fully automatic

Automationlevel : Semi-automatic / Fully automatic options

Brand Name : JZC

Weight : Approximately 800 kg

Place of Origin : China

Operatingspeed : Up to 60 units per minute

Productname : Check Valve Assembly Machine

Assemblyaccuracy : ±0.01 mm

Airpressurerequirement : 0.6-0.8 MPa

MOQ : 1

Machineweight : Approx. 500 kg

Contact Now

Product Description:

Fully Automatic One‑Way Valve Assembly Machine Multi‑Station Precision Assembly Line Fully Automatic One‑Way Valve Assembly Machine ZZSB001

Equipment Function:

1.Automatically feeding device;

2.With automatic hose positioning and loading mechanism;

3.With automatic coating UV glue and cyclohexanone mechanism;

4.With luer automatic assembly mechanism;

5.It has automatic assembly mechanism of one-way valve;

6.With one-way valve UV curing mechanism;

7.Automatic detection mechanism for product ventilation;

8.Defective product screening agency;

9.Complete safety protection device.

Technical Parametres:

1.Power supply:380V 50Hz;

2.Power:3.0KW;

3.Air supply:0.5-0.7mpa(Equipped with low pressure detection sensor,ensure the productionprocess of good yield);

4.The operating system adopts programmable controller PLC and man-machine interface display.

Configuration Specification:

1.Pneumatic components:SMC cylinder;

2.Electric control PLC:Omron;

3.Operation interfac:Siem.ns;

4.UV lamp and controller:Omron;

5.Digital dispensing machine:Meiyuan;

6.Stepping motor:Pana.onic;

mation TechnologV

7.Servo motor:Pana.onic;

8.Linear guide rail:WIHIN;

9.Bearing:NSK,Japan.

Scope of Application:

Suitable for Luer and hose length of 89mm~100mm assembly and testing.Size canbe customized.
